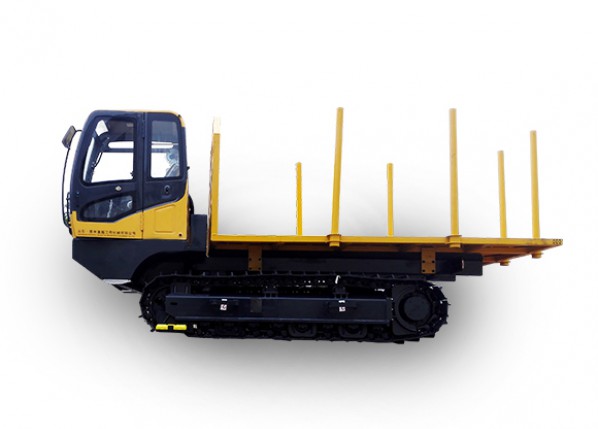

6T Steel crawler dumper

6T Steel crawler dumper

Product Categories：Steel crawler dumper
Browsing：　　　Date：2018-03-22

Return

Description

ZY-6T Track transporter technical parameters
1. Technical parameters
Engine model                                         Cummins4BTA3.9-C130
Rated power                                           95KW
Rated revolution                                     2200r/min
Working weight                                              12.5Ton
 Rated carrying capacity                            6Ton
Max. Walking speed             7km/h
Max. Flux                                                 2*140 L/min
System hydraulic pressure                         31.5MPa
Overall dimension(L*W*H)                      5800*2100*2600mm
Unilateral track grounding total length 3500mm
Width of the track shoe                              500mm
